Rubber and rubber-to-metal components

Built to your drawing.
Tracked to your door.

PT. Putrabangun Rubberindo manufactures molded rubber and rubber-to-metal bonded components at our plant in Cikupa, Tangerang: engine mountings, bushings and custom parts. Every order ships with its quality documents, and can be tracked by your own team in real time through our customer portal.

01Certified

ISO 9001 since 2009

02Plant

Cikupa, Tangerang

03Molding machines

46 presses and injection machines

04Monthly output

100,000–300,000 pcs

Products & applications

Engine mounting

Rubber-to-metal bonded, for vibration isolation. Commercial vehicles, passenger cars, gensets and industrial machinery.

Bushing

Arm, stabilizer and spring-eye bushings for suspension, chassis and linkage.

Custom molded rubber

Hoses, bumper stoppers, cover insulators, slider chains, packings, O-rings, grommets and pads, made to your drawing or your sample.

Sectors served

Automotive and general industry, the scope our ISO 9001 certificate is issued for.

Materials

Compound developed in-house

Compounds

NR · SBR · NBR · EPDM · CR · IIR · VMQ

Special properties

Oil · heat · ozone and weather · low temperature without embrittlement. Compounded to the property your application needs.

Compound development

Formulated and coded in-house. Every compound carries its own Certificate of Analysis.

What you get after the PO

portal.pbrubberindo.co.id

Orders

Five stages, per item, including partial shipments.

Shipments

Delivery note, vehicle position, driver and plate.

Documents

Drawing, QCPC and COA, current revision only.

Access

Passwordless sign-in; your data only. ID · EN · 日本語.

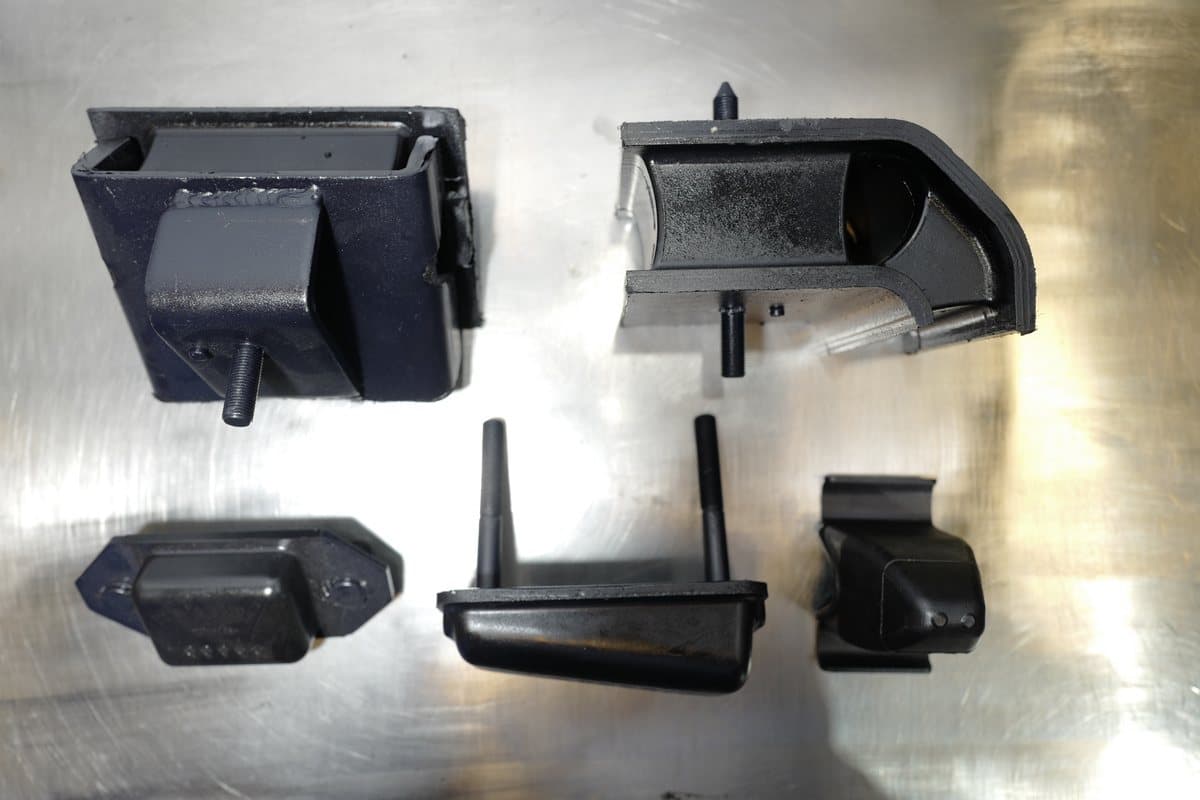

Engine mountings, bonded to metal

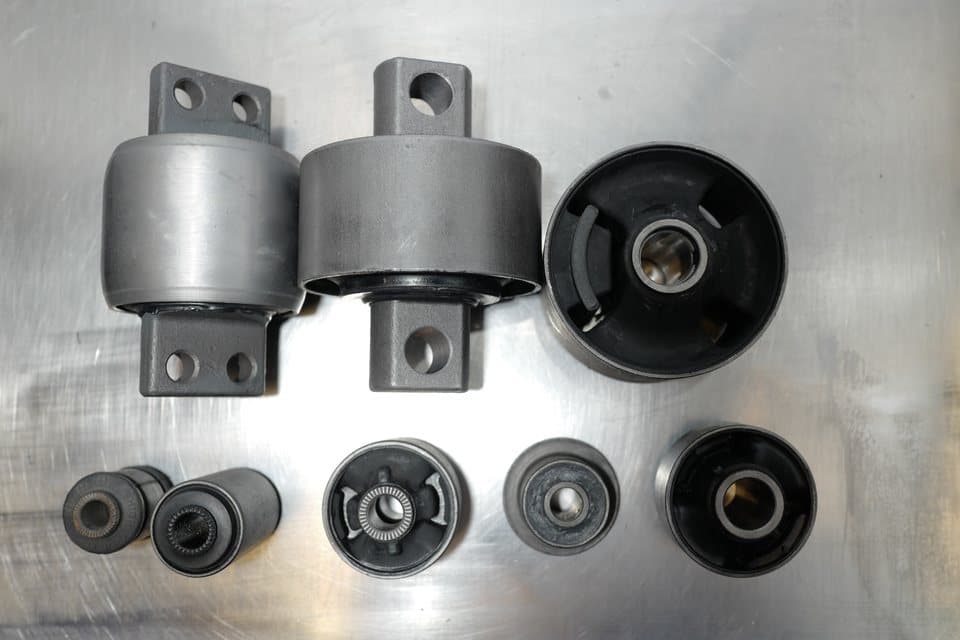

Arm and stabilizer bushings

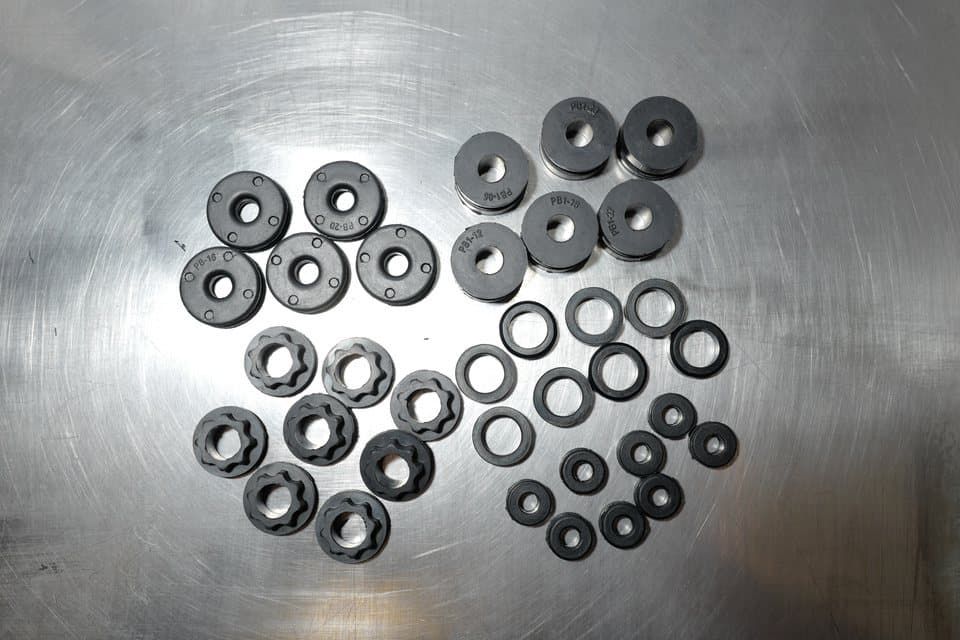

Dampers, grommets and small parts

04 · Process & equipment

33 presses.
13 injection machines.

Installed capacity as recorded in our machine master list, document PBR-ML-EngT-007 rev. 18, August 2026. Machines out of service are not counted.

Compound mixingown formula, own line

Kneader 75 L + 55 L, open mill 22" + 18", batch-off cooling and automatic chemical weighing. A 3 L kneader and a 6" mill for trial batches.

Preforming

Extruder with in-line cutter, and rubber cut-feeding, 3 units.

Compression & transfer molding

33 hydraulic hot presses: 250 t × 15 · 150 t × 2 · 100 t vacuum × 2 · 63 t × 4 · 50 t × 10.

Injection moldingLin Cheng · Matsuda

13 rubber injection machines: 300 t × 2 · 200 t cool runner × 9 · 200 t × 2.

Mold size accepted

Press platen 300 × 390 mm up to 650 × 650 mm.

Metal preparationfor bonded parts

Degreasing, shot blasting and phosphating. All in-house, on 2 drum shot blast machines and our own phosphating line.

Bonding

3 spray booths. Bond strength verified by pull test.

Finishing

High-speed and nitrogen deflashing, vibratory tumbling, trimming, post-cure ovens, 2 laser markers and laser cleaning.

Metal parts

Machined in-house: CNC lathe × 4 · turret punch × 6 · drilling × 5 · sawing × 6 · hydraulic press 5–100 t × 6 · power press 80 t × 2.

Tooling & development

Mold design

In-house

Mold making

In-house on our own CNC mold milling. Complex tooling is subcontracted.

Reverse engineering

Yes, we work from a physical sample

Tool room

2 × CNC milling · milling · die grinder · 2 × mold cleaning shot blast · FDM 3D printer for fit checks

Every part released with

Drawing · QCPC · COA · SOP, current revision only

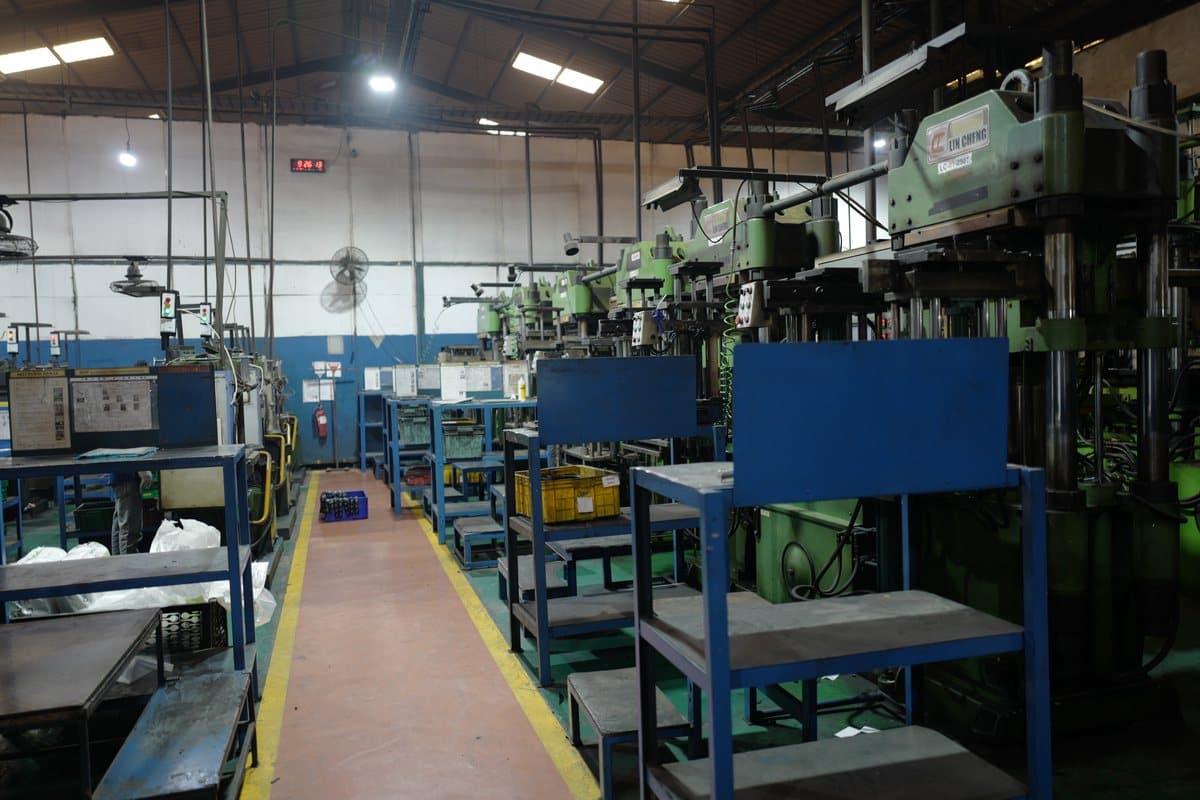

Curing line, hydraulic presses

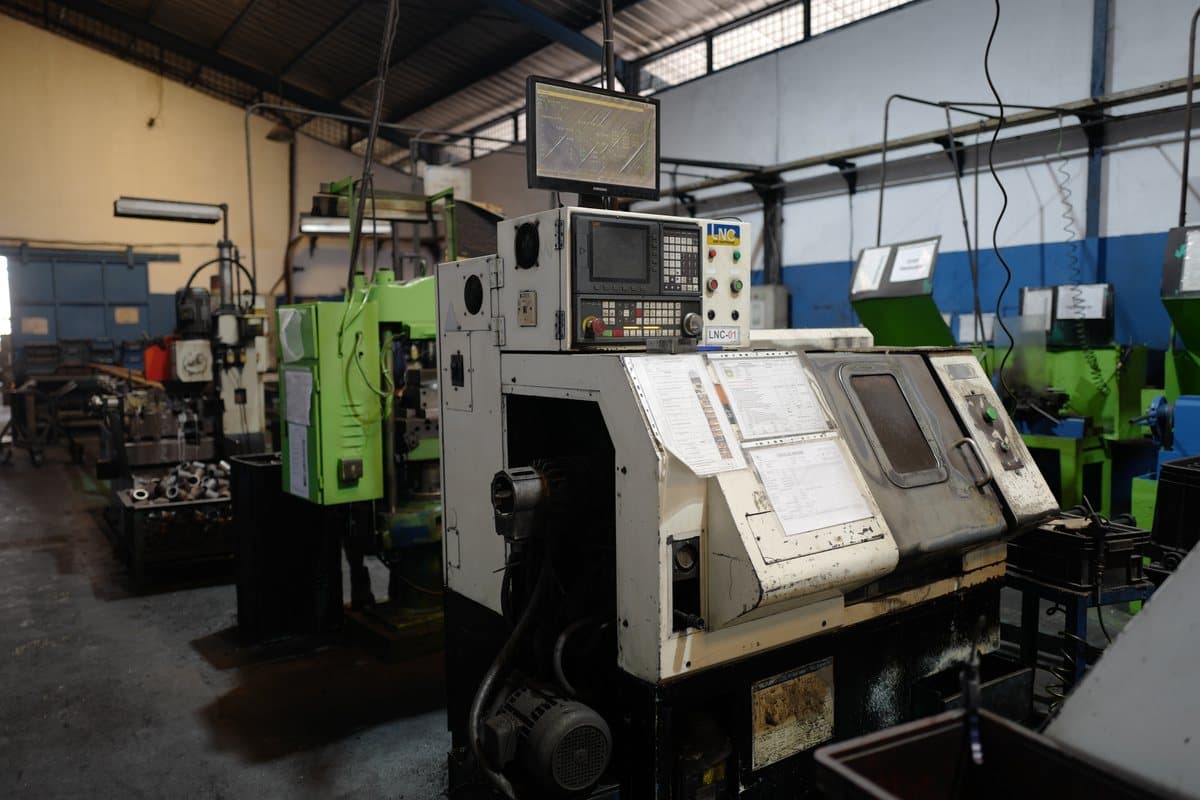

Machining, CNC turning for bonded metal parts

Working from a sample instead of a drawing? Send us the part. We measure it, propose a compound, and quote the tooling together with the piece price.

06 · Quality system

Certified, tested,
and visible to you.

Certification

ISO 9001:2015

SGS certificate ID09/01392, valid to 2 November 2027; certified since 2009. Scope: rubber parts for automotive and general industry.

IATF 16949

Not held

ISO 14001

Not held

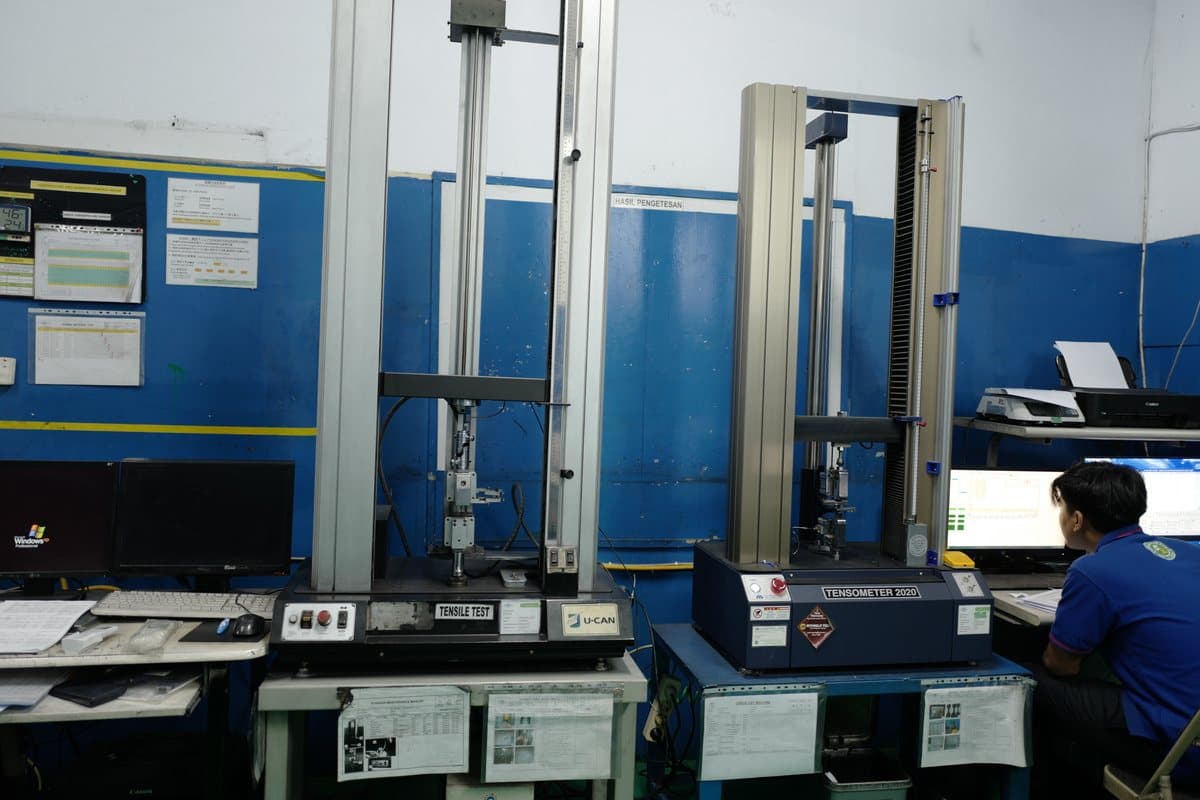

Tensile testing

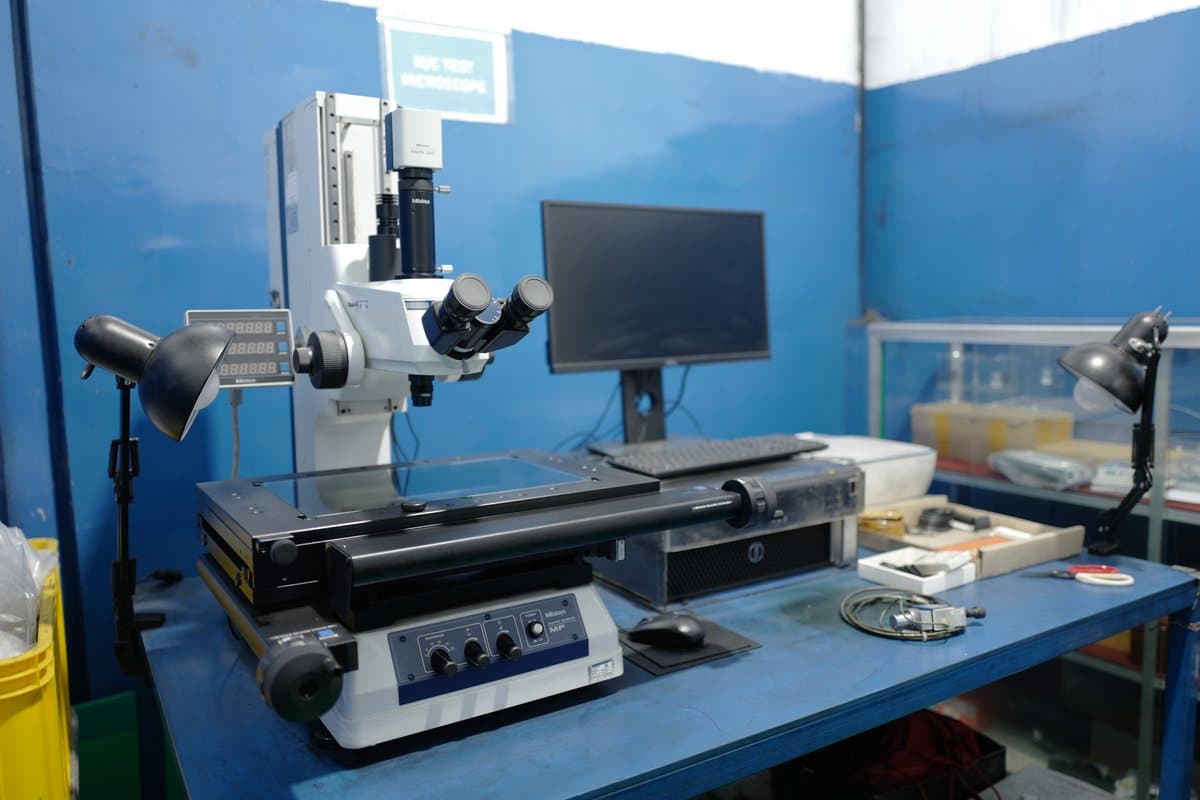

Measuring microscope

In-house testing, our own laboratory

Physical

Shore A hardness · tensile strength and elongation · density

Compound

Rheometer · Mooney viscometer

Durability

Aging oven · ozone chamber · Akron abrasion tester

Dynamic

2 dynamic test rigs · vibration simulator · endurance tester

Dimensional

Measuring microscope

Bond pull test

On our tensile strength tester

Traceability

Mill certificate per raw material batch

Commercial terms

Minimum order

By item. Tell us the volume and we will quote it

Production lead time

By item and volume, confirmed on the quotation

Quotation turnaround

1–2 working days

Delivery

Our own fleet

Payment terms

By agreement

How to start

01Send the drawing or the part

A 2D drawing, a 3D file, or the physical sample, with the application and the volume you expect.

02Feasibility & quotation

We confirm the compound, the process and the tooling, then quote piece price and mold together.

03Sample, trial, production

First article with its documents. Once approved, your portal account opens with the first PO.

Plant & office

PT. Putrabangun Rubberindo
Jl. Raya Serang Km. 17, Kawasan Industri Cikupa Mas I,
Jl. Telaga Mas I No. 1, Tangerang 15710, Indonesia

Sales enquiries

Deni
+62 813-3334-1230
marketingoem@sgsrubber.com

Online

pbrubberindo.co.id
portal.pbrubberindo.co.id

Come and see the plant first. A walk through mixing, molding and QC answers more than any document. You will be answered by a person, usually the same day.

Built to your drawing.Tracked to your door.
